Remote QTH


My WAN-operable remote listening post located 100 kilometers to the north of Helsinki, Finland.

- there are pictures after the text > click on the pictures to enlarge

I do all my dxing from or at my Remote QTH, which is presented in this page:

- Radios in remote use: Elad FDM-S2, SDRPlay RSP2Pro

- Remotely WAN-operable antenna switching unit Anteni.net MS-S7, inside unit via WLAN to router

- Laptop with SDR-Radio.com Console and Server version 2, SDRPlay Connect, via virtual USB- ports Ergo4 + ILG-database    and Rx_log_Tuner, laptop via WLAN to router

- Router, WAN 4G + Dynamic DNS for managing the changing WAN ip-addresses

- Several clamp on cores everywhere, between antennas and radios an NTi CCMC30 common mode current filter

- all inside equipment grounded to one point before out take to the outside grounding points

- The antennas at the remote QTH:

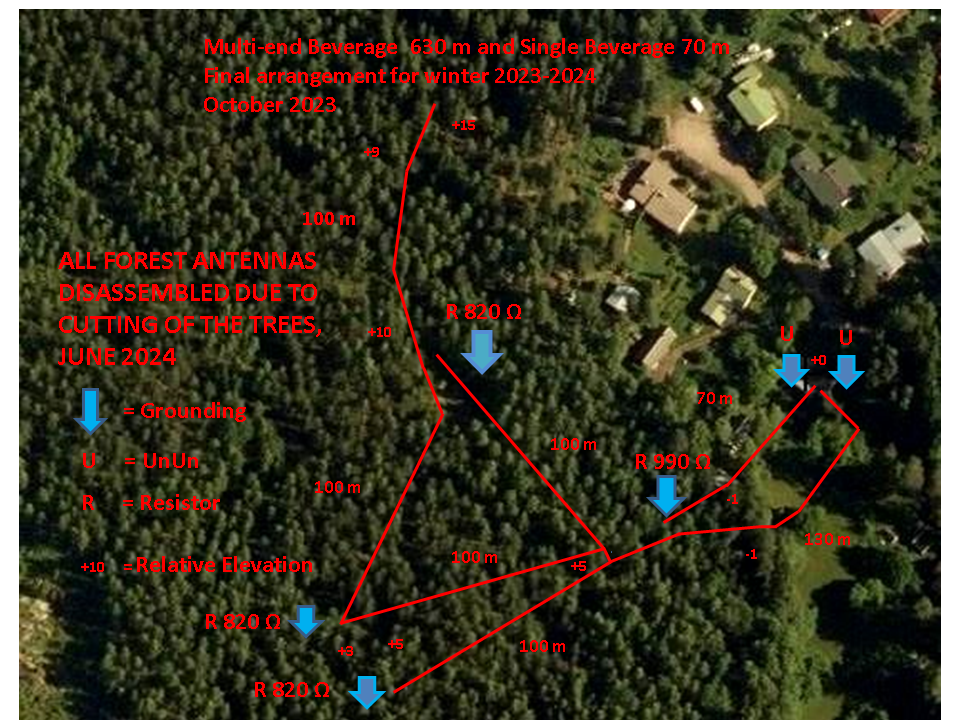

        - test antennas 2024: 220 meter long horizontal loop and 70 meter short Beverage, see drawing below for more                    details

- (Multi-end-Beverage, 630 m,  single Beverage, 70 m, both are  3 meters above ground level

          and have far end groundings with 800-1000 ohm metal foil resistors, lightning arresters before

          impedance matching,  Ham Goodies longwire multi UnUn's to RG-58, these Beverages were disassembled in June                2024 due to cutting of the forest trees)

- 40 meters long T2FD-antenna, center 8 meters high, 20 meter long sloping legs, omnidirectional

- 40 meters long modified doubled Double Kaz-antenna

- Everything grounded outside the house to 60 meters of 16 mm2 copper wire in and on the ground + five grounding rods      to a level under  ground frost, antenna wires underground to the outside antenna switch

RADIO DESK


ANTENNAS

Test antennas 2024: Horizontal loop and short Beverage










Former forest Beverages


T2FD




Modified Doubled Double KAZ, schematic



Double KAZ front end down

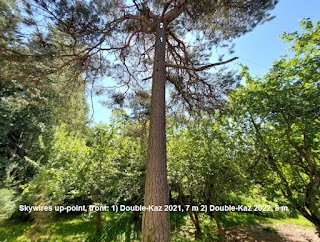

Double KAZ front end up




Double KAZ center point




Double KAZ rear end up




Double KAZ rear end down




Double KAZ noise management devices






Outside Antenna Center



Inside Antenna Center


REMOTE RADIOS and their noise management

























LOCAL RADIOS
